EN 1092-1 Flange Manufacturers in China
| Flange type in BS EN 1092-1 | ||
| 01 Plate [slip-on] flanges for welding | 05 Blank [blind] flanges | 11 Weld-neck flanges |
| 02 Loose plate flanges with weld-on plate collar | 21 Integral flanges | 13 Hubbed threaded flanges |
| 04 Loose plate flanges with weld-neck collar | 32 Weld-on plate collars | 34 Weld-neck collars |
| 12 Hubbed slip-on flanges for welding | 33 Weld-neck collars | |
| Some Flange featureS equivalents in EN1092-1 flange standards | |
| EN 1092-1 | DIN |
| DIN EN 1092-1 Type B Raised Face | DIN 2526 Form C |
| DIN EN 1092-1 Type C Tongue | DIN 2512 Feder (Form F) |
| DIN EN 1092-1 Type D Groove | DIN 2512 Nut (Form N) |
| DIN EN 1092-1 Type E Spigot | DIN 2513 Vorsprung (Form V) |
EN 1092-1 Type 11 Flange, EN 1092-1 Type 02 Flange, EN 1092-1 Flange Weights, EN 1092 Loose Flange, EN 1092-1 Threaded Flange
EN 1092-1 PN40 Flange Dimensions, EN 1092-1 PN10 Flanges, EN 1092-1 PN25 Flange Dimensions, Flanges UNI EN 1092-1, EN 1092-1 Type 11 PN10 Flange

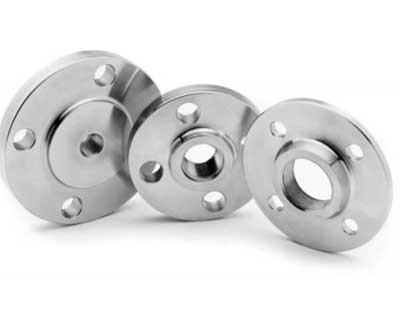

EN 1092-1 Flange Manufacturers
EN 1092-1 Type 11 WN Flange
Jinan Aowei is well known EN 1092-1 Flange Manufacturers in China, according to standard DIN EN 1092-1 (forged Carbon or Steel Flanges). Similar to the ASME flange standard, the EN 1092-1 standard has the basic flange forms, such as blind flange,weld neck flange, lapped the flange, threaded Flange, pressed collars , weld on collar, and adapter flange such as flange coupling GD press fittings. The different forms of flanges within the Flange EN 1092-1 is indicated within the flange name through the type.

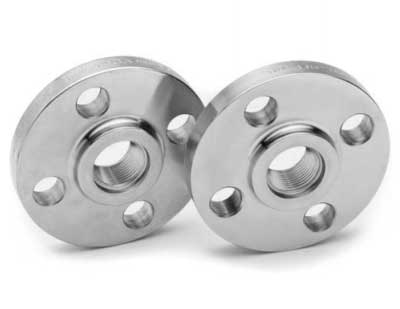

Design | According to EN Type |
Weld Neck Flange | Type 11 |
Blind Flange | Type 05 |
Slip on Flange | Type 12 |
Flat Flange | Type 01 |
Lapped Flange | Type 02 & Type 04 |
Threaded Flange | Type 13 |
Form: types of Contact Faces | DIN EN 1092-1 |
Without Raised Face | Form A |
Raised Face (Rz = 160 Mechanical Turned) | Form B1 |
Raised Face ( Rz = 40 Mechanical Turned) | Form B1 |
Raised Face (Rz = 16 Mechanical Turned) | Form B2 |
Tongue According to DIN2512 | Form C |
Groove According to DIN 2512 | Form D |
Male According to DIN 2513 | Form E |
Female According to DIN 2513 | Form F |
Female According to DIN 2514 | Form G |
Male According to DIN 2514 | Form H |
