Flange coating Hot-dip galvanizing / Cold galvanized / Yellow/Black Painting / Anti rust oil
1. Galvanizing, also known as Hot-dip galvanizing (HDG) is a process of applying a protective zinc coating by dipping product in bath of molten zinc. Galvanizing is a favored method of protective coating due to its low cost, ease of application, and long maintenance-free service life. Generally applied at 830 to 870 degrees, the zinc will bond with the steel. It is the most common outdoor protective coating in use. When used on bolts, due to the thickness of the zinc coating, all galvanized nuts must be tapped oversize.
Zinc plating or electroplating is a process where zinc is applied by using a current of electricity. It is a thinner coating than hot-dip galvanizing making it unsuitable for outdoor applications. Its advantages are its brightness and uniform color making it more aesthetically appealing.“Cold Galvanizing” or “Zinc plating”, ie the zinc salt solution by electrolysis, to the plating on the coating, generally do not have heating, small amount of zinc, the wet environment is very easy to fall off.

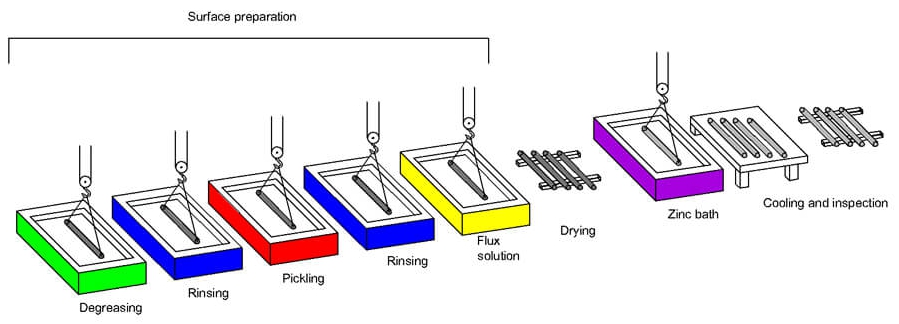

2.Hot dip galvanizing process
steel → heating → cooling to the temperature galvanized galvanized → cooling →
Cold galvanized zinc is only 10-50g/m2, its own corrosion resistance than hot dip galvanized a lot of difference. Galvanized by a relatively cheaper price.
Hot dip galvanized steel flange is hot dip galvanized surface under the condition of its adhesion strong, not easy to fall off, although there hot dip galvanized pipe corrosion phenomenon, but in a very long period to meet technical, health requirements.
3. Technological differences
First of all, is the difference between process: hot-dip galvanizing is the workpiece degreasing, pickling, dipping, drying liquid immersion in molten zinc certain period of time, can be raised.
Also known as electro-galvanized cold galvanizing, is to use electrolysis devices work piece through the degreasing, pickling ingredients post into the zinc salt solution, and connect the anode electrolysis equipment; in place across parts of zinc plate connected to the electrolysis equipment positive, power on, use of current from the cathode to the anode of the directional movement of the workpiece will be deposited in a layer of zinc.
Zinc finished the difference: no cold galvanized hot-dip galvanizing delicate bright appearance, but the thickness of zinc coating of cold galvanizing aspects of hot-dip galvanizing is a few times. Galvanized corrosion resistance is also several times.
Jinan Aowei manufacture flange products more than 30 years,the products sells well all over the world for the high quality.If you have any question,please contact us! Email:summer@jnaowei.com
